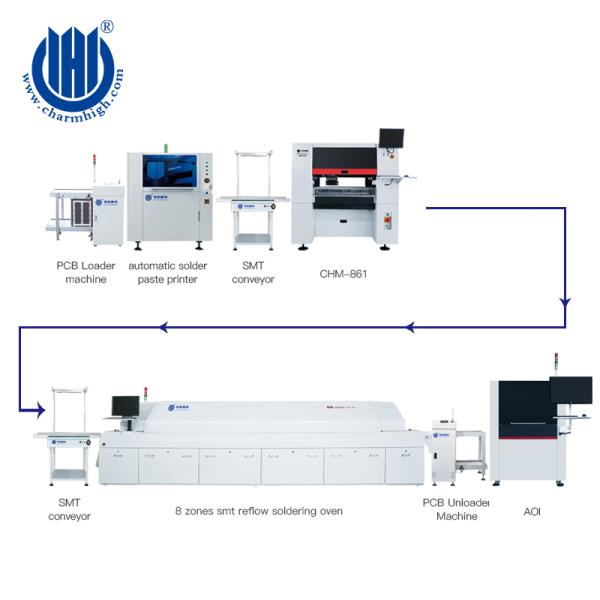

CHM-861 Production Line SMT Pick And Place Machine With 100 Feeder Stacks

  • 1
  • 2
  • 3

Brand Name : Charmhigh

Model Number : SMT production line

Certification : CE、FCC、SGC、ISO

Place of Origin : China

MOQ : 1 set

Price : Price Negotiable

Payment Terms : T/T

Supply Ability : 20 set a month

Delivery Time : 15 work days

Packaging Details : Wooden packing

Dimensions : 1600mm(L)×1430mm(W)×1530mm(H)

Weight : 1596kg

Air Supply : 0.5MPa ~0.7MPa

Mounting Head Quantity : 8

Mounting Speed : 33100cph (optimal)

PCB Thickness : 0.6mm~3.5mm

PCB Size : 450mm(L)×350mm(W) (standard);

Contact Now

CHM-861 Production Line SMT Pick And Place Machine With 100 Feeder Stacks

CHM-861 Production Line SMT Pick And Place Machine With 100 Feeder Stacks

CHM-861 Production Line SMT Pick And Place Machine With 100 Feeder Stacks

CHM-861 Specifications
Dimensions 1600mm(L)×1430mm(W)×1530mm(H)
Weight 1596kg
Power Supply AC380V (50Hz, three phase), 4.5kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 8
Mounting Speed

33100cph (optimal)

IPC9850:25700cph
Mounting Accuracy (XY)±0.05mm CPK≥1.0
Control Accuracy 4μm
Component Height 12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size

450mm(L)×350mm(W) (standard);

1200mm(L)×350mm(W) (optional)
PCB Conveying 3-section-rail automatic conveying, PCB support
Nozzle Change Automatic nozzle change (37-hole nozzle library)
Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System

100 NXT 8mm standard feeder stacks

(also suitable for IC tray and stick feeder)
Vision System

Fly camera×8 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2

CHM-861 Production Line SMT Pick And Place Machine With 100 Feeder StacksCHM-861 Production Line SMT Pick And Place Machine With 100 Feeder StacksCHM-861 Production Line SMT Pick And Place Machine With 100 Feeder StacksCHM-861 Production Line SMT Pick And Place Machine With 100 Feeder Stacks
