Temperature Control Accuracy 2500W PCB Production Line For Assembly
100% High feedback! Best sale SMT Production line:
3040 Stencil printer + CHM-T48VB 58 feeders + 2500w Reflow oven CHMRO-420 (220v),
English language version 110V/220v Charmhigh
Dear friends, here we recommend the best sale SMT production line combination for you, most cutomers like this set!
Stencil printer 3040 is the best quality in China with high feedback, 100% high feedback. CHM-T48VB sells very well and it has 58pcs feeders, which can meed more customers demand, it is very popular now! And CHMRO-420 reflow oven is the best quality drawer type oven in China, it is better than other drawer type oven in China, we recommend!
Description for 3 items:

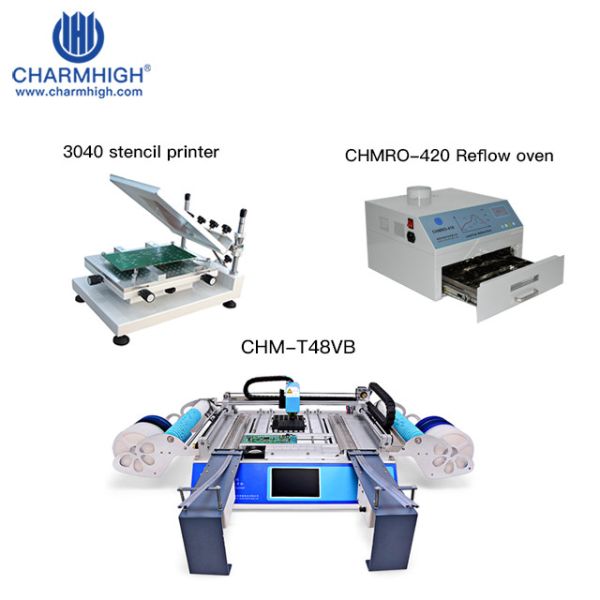

1.CHM-T3040 Stencil Printer
| Work table size | 300*400mm |
| Print size | 250*400mm |
| Max net frame size | 370*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal Angle adjustment |
| Printing platform height | 220mm |
| repeated accuracy | ±0.01mm |
| locate mode | Benchmark or hole shape |
| Dimension | 540*370*350 mm |
| Packing size | 660*550*280mm |
| Weight | NW.17Kg GW.23Kg |
2.CHM-T48VB Main Parameters
This CHM-T48VB is an update version of CHM-T48VA, which included dual side feeders with total 58pcs (left 29pcs + right 29pcs).
The operation system is the same as CHM-T48VA and it can install more different kinds of materials, using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP144,Diode,Transistor,BGA...etc, which can meet more customers' demand.
| Model | CHM-T48VB |
| PCB area | 10mm*10mm - 345mm*355mm |
| X Y axis Travel | 510*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders | Left 29pcs + right 29pcs 8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs, Front IC stack=14pcs, user-defined IC tray |
| Vision system | Dual cameras (up & down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, prevent nozzles breaking |
| Pull pin self-return | Yes |
| Leakage of material detection method | Vacuum detection, vision detection |
| Touch screen | 7inch industry touch screen |
| Main board | Independent research industry main board |
| System | Embedded Linux system |
| Mounting speed | 5000cph (vision off); 3000cph (vision on) |
| Mounting precision | plusmn0.025mm |
| Components | 0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L 960mm* W 705mm* H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | No need , PC in-build |
| Voltage | 220V (110V), 50Hz |
| Net weight | 70kg |
| Gross weight | 86kg ---- wooden packing |
Standard Accessories for CHM-T48VB:
1) Pick and Place MachineCHM-T48VB: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Pull pin: 2
6) Coil for pull pin:1
7) Camera positioning adjust black board: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1
3.CHMRO-420 Reflow oven:
Soldering max area: 270*270MM
Soldering way: Hot air + IR mix
Rated power: 2500W
Process Period: 5- 10 min
Max temperature: 300 degree
Temperature control accuracy plusmn1 degree (constant temperature)
Welding type: Lead & Lead free
Power Supply: AC220V/50-60HZ
Detail pictures:
CHM-T48VB------This is version "B" model :
It has double stack, can install more material
Vision camera CCD system, place components very accurate!
A closed-loop servo high-pressure stepper motor system,
ensure X and Y axis never loose steps:
User-defined IC Tray:
Samples:
Touch screen control, no need externel computer, very easy operation!
CHM-T48VB HOT SALE
SAFE PACKING
Machine is completed, ready for work, each machine will be 100% tested well, QC passed.
Please purchase it with confidence.
Quality guarantee, quality is better than other brand machines.
Packing list:
CHM-T48VB Desktop pick and place machine complete set ---- 1
High precision stencill printer 3040 best quality ---- 1
2500W 300*300mm Infrarad + hot air reflow oven CHMRO-420 (220v) ---1
