CHM-750 Introduction

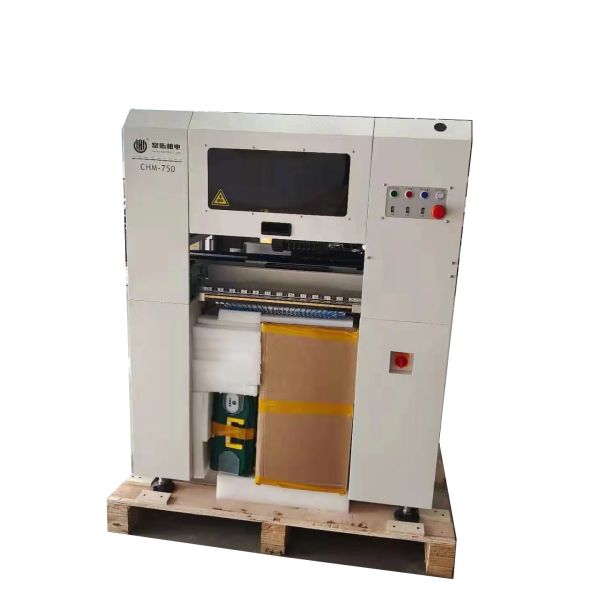

This is CHM-750, a high-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.
The CHM-750 is characterized by 50 feeder stacks, support for Yamaha pneumatic feeders and stick feeders with tubular components,automatic correction to pick components, 4 heads capable of 360-degree rotation, automatic positioning through recognition of Mark Point for high mounting accuracy, integrated operation with built-in industrial computer.
CHM-750 main features
1. Model number: CHM-750
2. Brand: Charmhigh
3. main configuration: type of desktop + 6-head 50 feeders + automatic calibrate pcb +built-in pc and built-in linux system embedded + closed circuit control engine with coded + Nine cameras + linear track
4. feeder: yamaha cl feeder/electric feeder (feeders need to buy separately)
5. pcb area: 400mm*350mm
6. Component: The CHM-750 support 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
7.Mounting speed:11000cph
Specifications
| CHM-750 Specifications |
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 520kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head Quantity | 6 |
| Mounting Speed | 15000cph (optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Placement Effect
Our Service
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
