Product Description:
The Automatic Pick and Place Machine can handle a wide range of PCB sizes, from 50mm X 50mm to 450mm X 350mm, making it a versatile addition to your production line. With a maximum air supply of 0.7MPa, this machine can easily handle even the most challenging production environments.
This machine is equipped with 8 mounting heads, ensuring that your components are placed with speed and precision. Whether you're working on a large production run or a smaller project, our Automated Pick-and-Place System can handle it all.
The feeder capacity of this machine is 80, allowing you to work on multiple projects simultaneously without the need for constant reloading. This feature significantly reduces downtime and increases productivity, making this machine a must-have for any manufacturing facility.
Our Automated Pick-and-Place System is designed to simplify your production process, allowing you to focus on creating high-quality products. This machine is easy to use and requires minimal training, making it a great investment for any business looking to streamline their production process.
Overall, the Automatic Pick and Place Machine is an excellent choice for any business looking to increase efficiency and accuracy in their SMT production. With its versatile PCB size range, multiple mounting heads, and high feeder capacity, this machine is sure to improve your production process significantly. Don't wait, invest in our Automated Pick-and-Place System today and take your business to the next level!
Features:
- Product Name: Automated Pick-and-Place System
- Mounting Head Quantity: 8
- Dimensions: 1280mm X 1320mm X 1500mm
- Control System: Built-in Computer
- Component Height: 12mm
- Feeding System: 80 NXT 8mm Standard Feeder Stacks
Technical Parameters:
| Component Range |
01005-BGA |
| Pcb Thickness |
0.6mm~3.5mm |
| Weight |
1500kg |
| Pcb Size |
50mm X 50mm To 450mm X 350mm |
| Mounting Head Quantity |
8 |
| Feeding System |
80 NXT 8mm Standard Feeder Stacks |
| Type |
SMT |
| Air Supply |
0.5MPa ~0.7MPa |
| Feeder Capacity |
80 |
| Dimensions |
1280mm X 1320mm X 1500mm |
Applications:

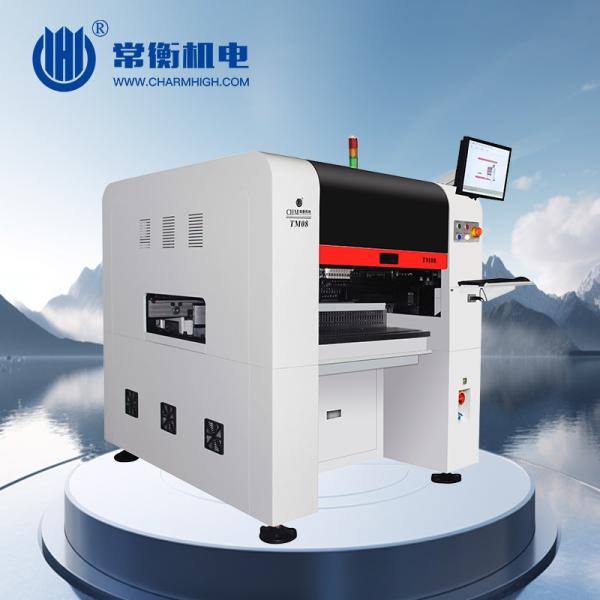

The TM08 is a versatile and efficient pick-and-place machine that can be used in a variety of manufacturing scenarios. Its placement speed of 35000 CPH makes it ideal for high-volume production lines. It can handle PCB thicknesses ranging from 0.6mm to 3.5mm, making it suitable for a wide range of applications.
The TM08 is an ideal product for small and medium-sized electronics manufacturers who want to automate their production lines. The system is easy to operate and requires minimal training, making it an ideal choice for companies looking to reduce labor costs.
The TM08 is CE, FCC, RoHS, and SGS certified, ensuring that it meets the highest standards of quality and safety. The system comes in an export wooden box packaging, ensuring that it arrives at its destination in excellent condition.
Charmhigh offers the TM08 at a negotiable price, making it an affordable option for businesses of all sizes. The minimum order quantity is one set, and the supply ability is 20 sets.
The TM08 is an excellent product for a variety of applications, including electronics manufacturing, LED lighting, automotive electronics, and more. Its compact dimensions of 1280mm X 1320mm X 1500mm make it easy to install in any manufacturing facility.
Whether you are a small business looking to upgrade your production line or a large corporation needing a reliable automated pick-and-place system, the TM08 from Charmhigh is an excellent choice. Order yours today and experience the benefits of an automated pick-and-place system.
Customization:
Our product customization services include a minimum order quantity of one set, price negotiable, and packaging details of an export wooden box. We offer delivery within 15 days after full payment, with payment terms of T/T. Our supply ability is 20 sets and we are committed to providing the highest quality products and customer service.
Support and Services:
The Automatic Pick and Place Machine is a cutting-edge product that requires technical support and services to ensure optimal performance. Our team of experts offers a range of services, including:
- Installation and setup
- Training and education
- Regular maintenance and repair
- Software updates and upgrades
- 24/7 technical support and troubleshooting
Our technical support and services are designed to help you get the most out of your Automatic Pick and Place Machine. Whether you need assistance with installation or ongoing maintenance, our team is here to help you every step of the way.
